Composite Geomembrane

Two-Way HDPE Composite Geomembrane | ASTM D4886 & GB/T 17643 Standard Anti-seepage Material

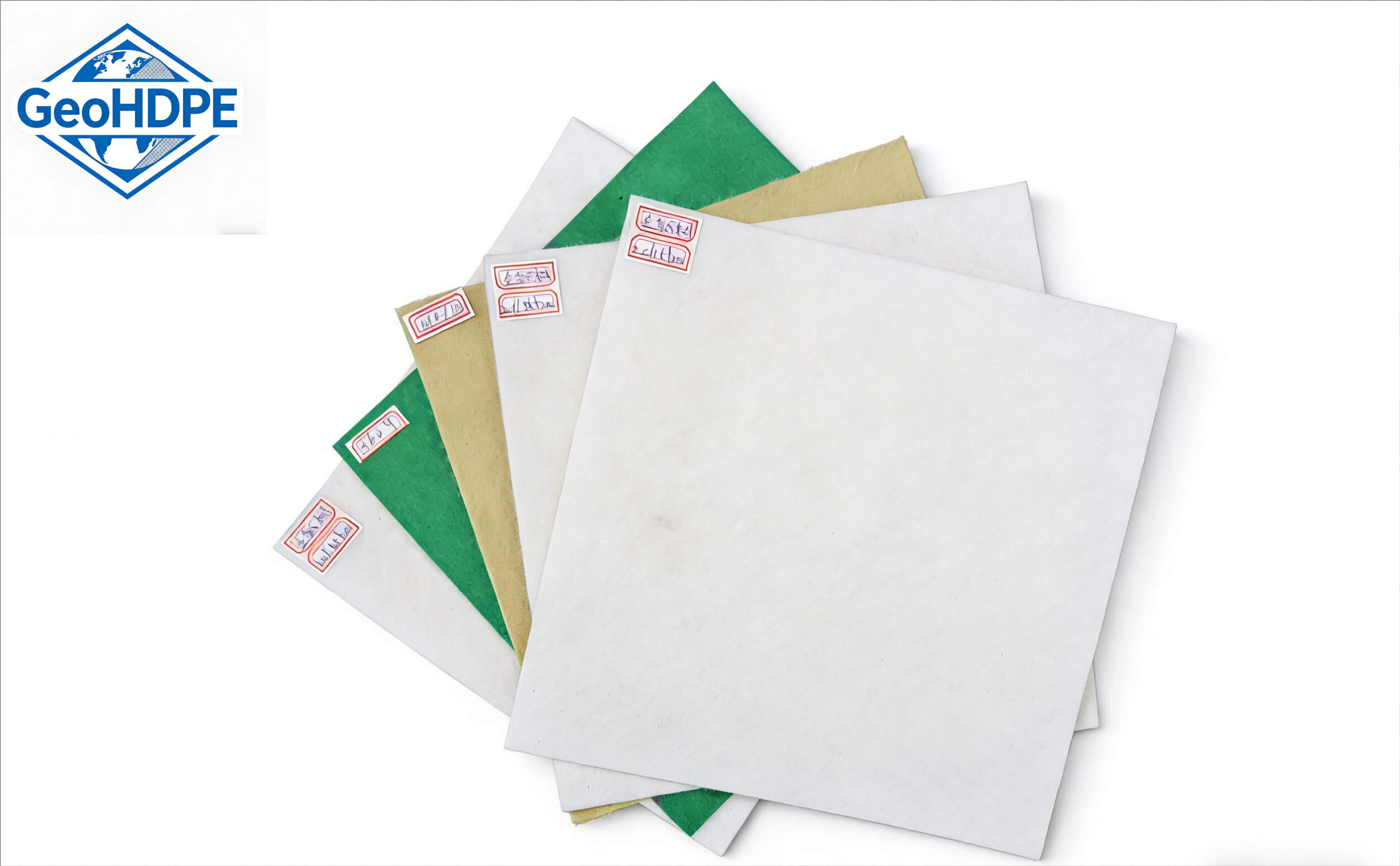

HDPE Composite Geomembrane for Aquaculture

Product Overview

Dezhou Shengyuan New Materials Technology Co., Ltd. is a professional manufacturer of high-quality composite geomembrane, which is produced by advanced hot compound process, perfectly combining non-woven geotextile and high-density HDPE geomembrane into an integrated anti-seepage material. This product integrates the excellent filtration, drainage, protection and reinforcement functions of geotextile with the super anti-seepage, isolation and corrosion resistance properties of geomembrane, forming a high-performance composite geotechnical material.

Our composite geomembrane fully complies with ASTM D4886 (American Standard) and GB/T 17643 (National Standard), with stable performance and reliable quality. It is widely used in various global anti-seepage projects, including solid waste landfills, aquaculture ponds, water conservancy dams, highway tunnels, sewage treatment plants, mining projects and environmental protection engineering, solving the anti-seepage problems of various complex engineering environments efficiently and durably.

Key Features & Advantages

Excellent dual anti-seepage & isolation performance, zero leakage in long-term use

High tensile strength and puncture resistance, adapt to complex geological environments

Good drainage and filtration capacity, quickly guide water flow and isolate impurities

Acid, alkali, salt, corrosion & UV resistance, suitable for harsh outdoor environments

Strong peeling strength, firm composite layer, not easy to delaminate or damage

Easy construction, low labor cost, long service life up to 50 years

Wide temperature adaptability, stable performance in extreme environments

Light weight, convenient transportation and low project cost

Technical Specifications (International Standard)

Item	Unit	Test Standard	Specification Index
Unit Mass (Geotextile)	g/m²	ASTM D5261	200	300	400	500
Membrane Thickness	mm	ASTM D5199	0.3	0.5	0.8	1.0
Breaking Strength (MD)	kN/m	ASTM D4533	≥8.0	≥12.0	≥16.0	≥20.0
Breaking Strength (CD)	kN/m	ASTM D4533	≥6.5	≥10.0	≥14.0	≥18.0
Peeling Strength	N/cm	ASTM D4886	≥6.0
Puncture Resistance	N	ASTM D4833	≥300	≥400	≥500	≥600
Permeability Coefficient	cm/s	ASTM E96	≤1×10⁻¹²
Trapezoid Tear Strength	N	ASTM D4533	≥350	≥480	≥600	≥750
Width	m	-	1.0 - 6.0
Type	-	-	One-Side / Two-Way Composite

Application Fields

Landfill & Solid Waste Treatment Engineering

Fish/Shrimp Aquaculture Ponds Anti-seepage

Water Conservancy Dam & Reservoir Seepage Control

Highway/Railway Tunnel Waterproofing

Sewage Treatment Plant & Chemical Pool

Mining Tailings Pond & Environmental Protection

River Regulation & Slope Protection

Building Basement Waterproofing

Why Choose Dezhou Shengyuan Composite Geomembrane?

✅ 100% Virgin Raw Materials: Virgin HDPE & high-quality nonwoven geotextile, no recycled materials, ensuring product performance.

✅ International Standard Certification: Comply with ASTM D4886 & GB/T 17643, 100% full inspection before delivery.

✅ Factory Direct Supply: 15+ years professional manufacturer, 200,000 ㎡ production base, cost-effective price.

✅ Customized Service: Support customized thickness, weight, width and type for different projects.

✅ Stable Supply Capacity: Large stock and fast delivery, meet large-scale project demands.

✅ Professional Technical Support: Free on-site guidance, welding support and full after-sales service.

✅ Global Export Experience: Exported to 50+ countries, trusted by worldwide customers.

Get Free Quote Now
